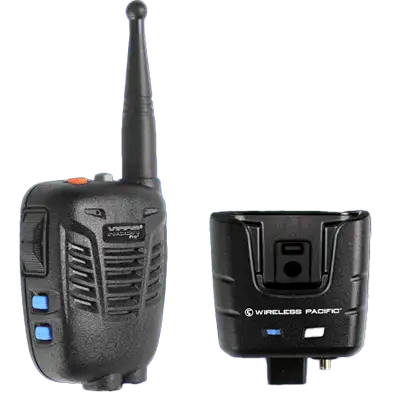

X10DR Pro | FRS Portable Two-Way Radio X10DR Pro

X10DR

X10DR Pro Plus

The AES 128bit secure X10DR Pro Plus is the latest incarnation of Wireless Pacific’s patented well-proven ‘out of vehicle’ communications solution. Providing all the original first-generation X10DR and 2nd generation Pro Series established ‘out of vehicle’ capabilities. Focused on supporting the lone worker it now features advanced emergency and optional Mandown biometric monitor for the remote monitoring of the workers well being. The Pro Plus model additionally features an IP67 waterproof housing and a ‘Search’ button for multiple gateway roaming for non-vehicle applications.

All voice communications plus system alert tones from the mobile radio and other connected X10DR users are audible at all times ensuring users are totally connected. Like the Elite Plus model, X10DR Pro Plus has Find Me™ allowing a lost handset or more importantly, will assist. a colleague to be audibly located should they fall unconscious in the course of their duties.

X10DR – XX1 Advanced Mobile Secure Wireless Microphone Includes:

  • Safer 128-bit Encryption
  • Weatherproof IP55 rated
  • 300 meters/1000ft Range – typical line of sight
  • Standard Emergency – triggers emergency input on mobile
  • Hirose 6-Pin External Headset Audio Accessory
  • 3.5mm earpiece audio output jack on secure microphone
  • Volume Controls on top
  • Classic PTT button
  • Classic secure microphone antenna
  • Multi-Unit capability (with XIB-TA/XFB-TA junction box)
  • Remote / handlebar PTT capability
  • Compatible with X10DRDC 1st generation chargers
  • 1450mA Li Po Battery
  • Battery life: >12 Hours @ 30% receive time/typically >24 hours
  • Integrated plastic clip
  • Magnetic latching mobile X-Ponder/Charger
  • RF Power: <100mW
  • Frequency: 2.40-2.48GHz FH Spread Spectrum
  • Shock and Vibration: Mil Std 810 C/D/E/F

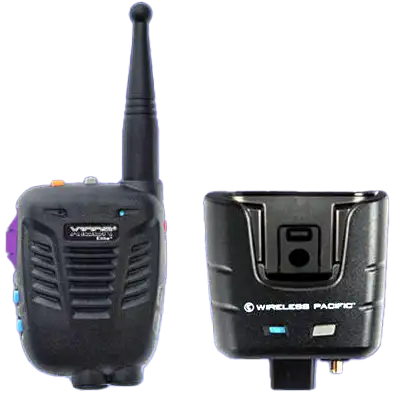

X10DR Elite | FRS Portable Two-Way Radio X10DR Elite

X10DR Elite Plus

Elite Plus models allow two handsets to operate from a single gateway creating an exclusive, secure, and private, local talkaround channel to allow your team to communicate license-free on-site while still maintaining instant access to the host mobile radio network.

Best of all they are now fully equipped to provide full-duplex handsfree operation on site.

Think of the workflow improvements handsfree can provide your work teams onsite.

X10DR-XU1 Standard Mobile Secure Wireless Microphone Includes:

  • Safer 64-bit Encryption
  • Weatherproof IP55 rated
  • 300 meters/1000ft Range – typical line of sight
  • Standard Emergency – triggers emergency input on mobile
  • 3.5mm earpiece audio output jack on secure microphone
  • Volume Controls on top
  • Classic PTT button
  • Classic secure microphone antenna
  • Multi-Unit capability (with XIB-TA/XFB-TA junction box)
  • Remote / handlebar PTT capability
  • Compatible with X10DRDC 1st generation chargers
  • 1450mA Li Po Battery
  • Battery life: >12 Hours @ 30% receive time/typically >24 hours
  • Integrated plastic clip
  • Magnetic latching mobile X-Ponder/Charger
  • RF Power: <100mW
  • Frequency: 2.40-2.48GHz FH Spread Spectrum
  • Shock and Vibration: Mil Std 810 C/D/E/F

Performance Characteristics

  • Talk in or out of the vehicle
  • 60 meters… 150 meters… 300 meters
  • Back to base and team communications
  • Seamless integration with mobile radios
  • Secure encrypted communication
  • Easy to use, intuitive design
  • Minimal user training required

X10DR Benefits

Pro Plus Benefits

  • Mandown biometric monitor (optional)
  • IP67 waterproof microphone
  • AES 128 bit encrypted voice
  • Dramatic noise reduction
  • Very loud & clear audio
  • Simple intuitive design
  • Ext. battery charging
  • Lightweight & rugged
  • Seamless integration
  • Minimal user training
  • All day operation
  • Cost effective
  • Headset port
  • Proven

Elite Plus Benefits

  • Talk from the shoulder audio
  • Range extender relay mode
  • Full-duplex handsfree talkaround
  • Multi microphone operation
  • Talk in or out of the vehicle
  • AES 128 bit encrypted voice
  • Dramatic noise reduction
  • Very loud & clear audio
  • Simple intuitive design
  • Minimal user training
  • Lightweight & rugged
  • IP67 waterproof mic
  • All-day operation
  • Plus much more...
  • *700 meters with xrtg plus rooftop gateway

Physical Characteristics

  • Talk in or out of the vehicle
  • 60 meters… 150 meters… 300 meters
  • Back to base and team communications
  • Seamless integration with mobile radios
  • Secure encrypted communication
  • Easy to use, intuitive design
  • Minimal user training required

Mandown Monitor

Optional

The X10DR Pro Plus handset can be fitted with the XMD mandown monitor that constantly monitors the activity of the user whenever they leave their vehicle.

Should the user become immobilized for any reason for longer than two minutes, the integrated device will first alert the user with a 30-second countdown alert sequence before triggering the radios emergency alarm.

For convenience, the movement detector can be temporarily paused by the user when necessary.

Live Mic can also be activated as part of the standard Advanced Emergency protocol so others sharing the radio channel/ talkgroup can monitor the immobile user’s situation.

No Accessories List at present

Please Contact Us for more information
